Set checkbox (web) ​

Function Description ​

TIP

Set the state of a checkbox on the webpage to checked or unchecked.

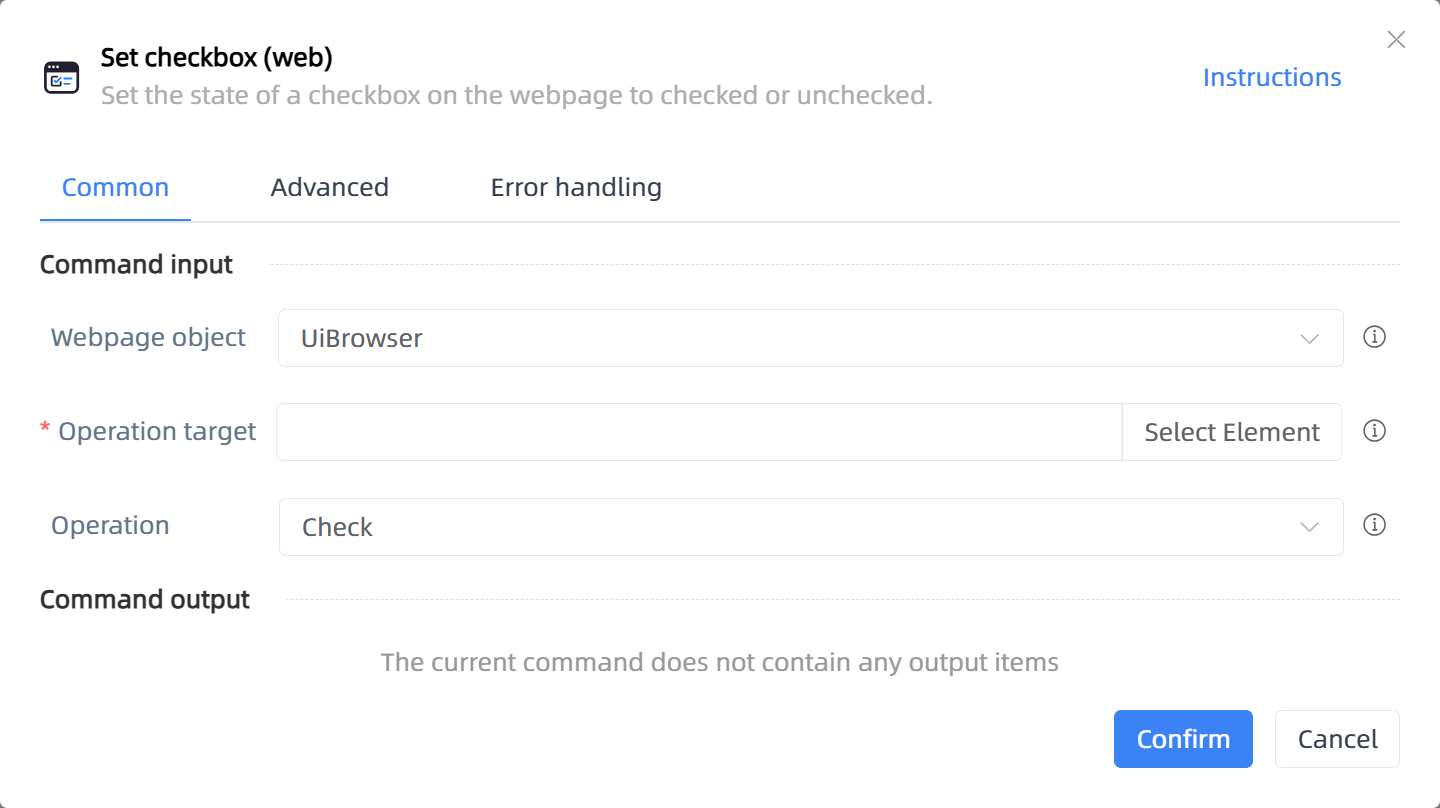

Set checkbox (web)

Configuration Item Description ​

General ​

Command Input

  • Webpage objectTBrowser: Enter a webpage object that has been obtained or created through the 'open webpage' function.

  • Operation targetTTarget: Select the web element to be operated on.

  • OperationInteger: The operation to be performed on the checkbox.

Command Output

No output for the current command

Advanced ​

  • Delay time (ms)Integer: Time to continue waiting after the command is executed.

  • Delay Before (ms)Integer: The waiting time before instruction execution

  • Wait for element existence (ms)Integer: Timeout for waiting for the target checkbox to exist.

Error Handling ​

  • Print Error LogsBoolean: Whether to print error logs to the "Logs" panel when the command fails. Default is checked.

  • Handling MethodInteger:

    • Terminate Process: If the command fails, terminate the process.

    • Ignore Exception and Continue Execution: If the command fails, ignore the exception and continue the process.

    • Retry This Command: If the command fails, retry the command a specified number of times with a specified interval between retries.

Usage Example ​

Process logic description:

Common Errors and Handling ​

None

Frequently Asked Questions ​

None
