Cycle Similar Elements (win) ​

Function Description ​

TIP

Sequentially cycle through each item in the similar elements list of the desktop software window for automation operations.

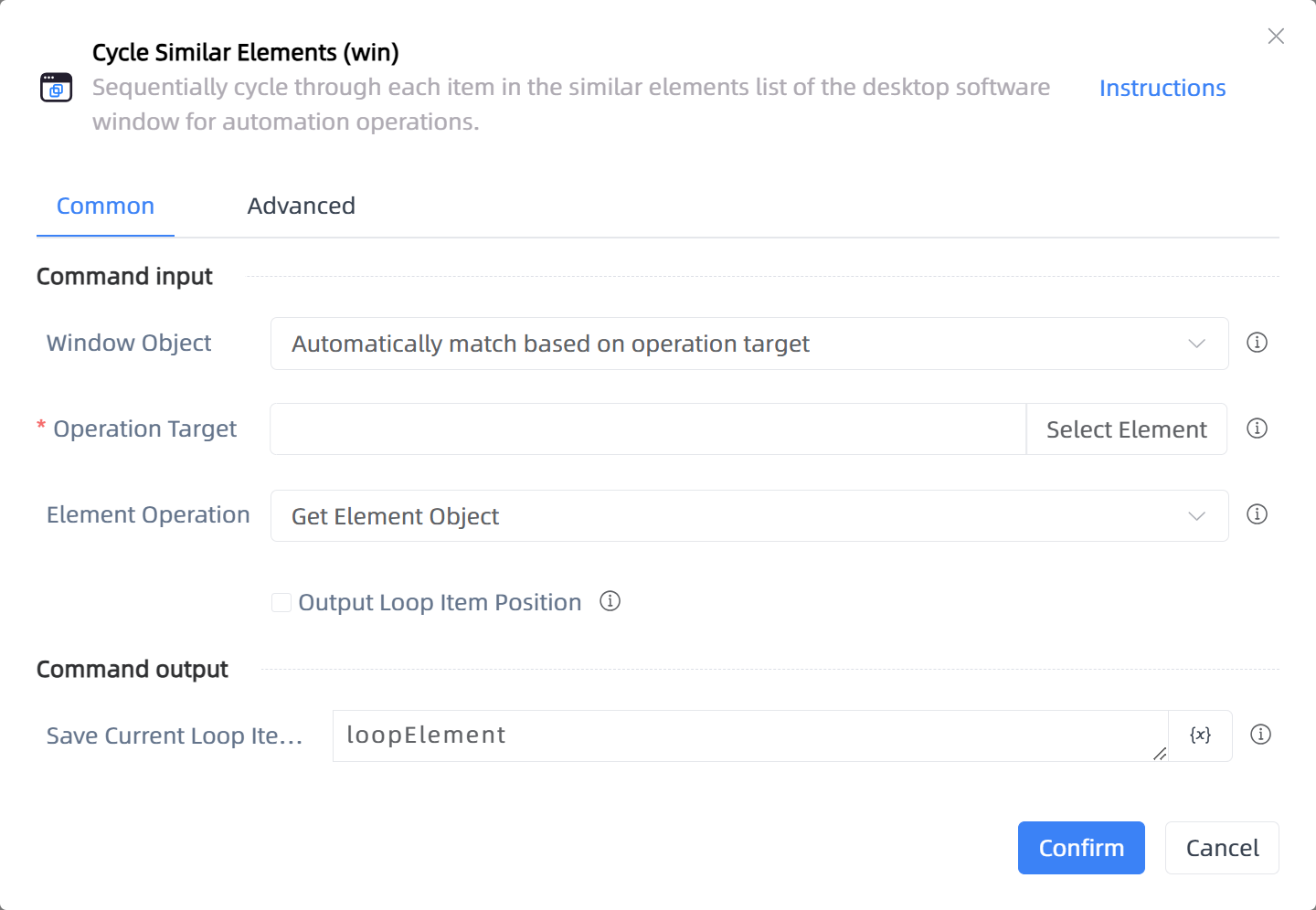

Cycle Similar Elements (win)

Configuration Item Description ​

General ​

Command Input

  • Window ObjectTWinObj: Enter a captured window object.

  • Operation TargetTTarget: Select the window element that needs to be operated on.

  • Element OperationInteger: Operate on element information.

  • Attribute Namestring: Element attribute name.

  • Output Loop Item PositionBoolean: Whether to output the position of the loop item.

Command Output

  • Save Current Loop Item ToTUiElement: Specify a variable name to store current loop item information.

  • Save Current Loop Position ToInteger: Save the count of obtained similar elements.

Advanced ​

  • Loop Start PositionInteger: Loop start position, 0 is the first item.

  • Loop End PositionInteger: Loop end position, -1 is the last item.

  • Wait for Element to Exist (ms)Integer: Timeout time for waiting for the target associated element to exist.

Error Handling ​

  • Print Error LogsBoolean: Whether to print error logs to the "Logs" panel when the command fails. Default is checked.

  • Handling MethodInteger:

    • Terminate Process: If the command fails, terminate the process.

    • Ignore Exception and Continue Execution: If the command fails, ignore the exception and continue the process.

    • Retry This Command: If the command fails, retry the command a specified number of times with a specified interval between retries.

Usage Example ​

Process logic description:

Common Errors and Handling ​

None

Frequently Asked Questions ​

None
